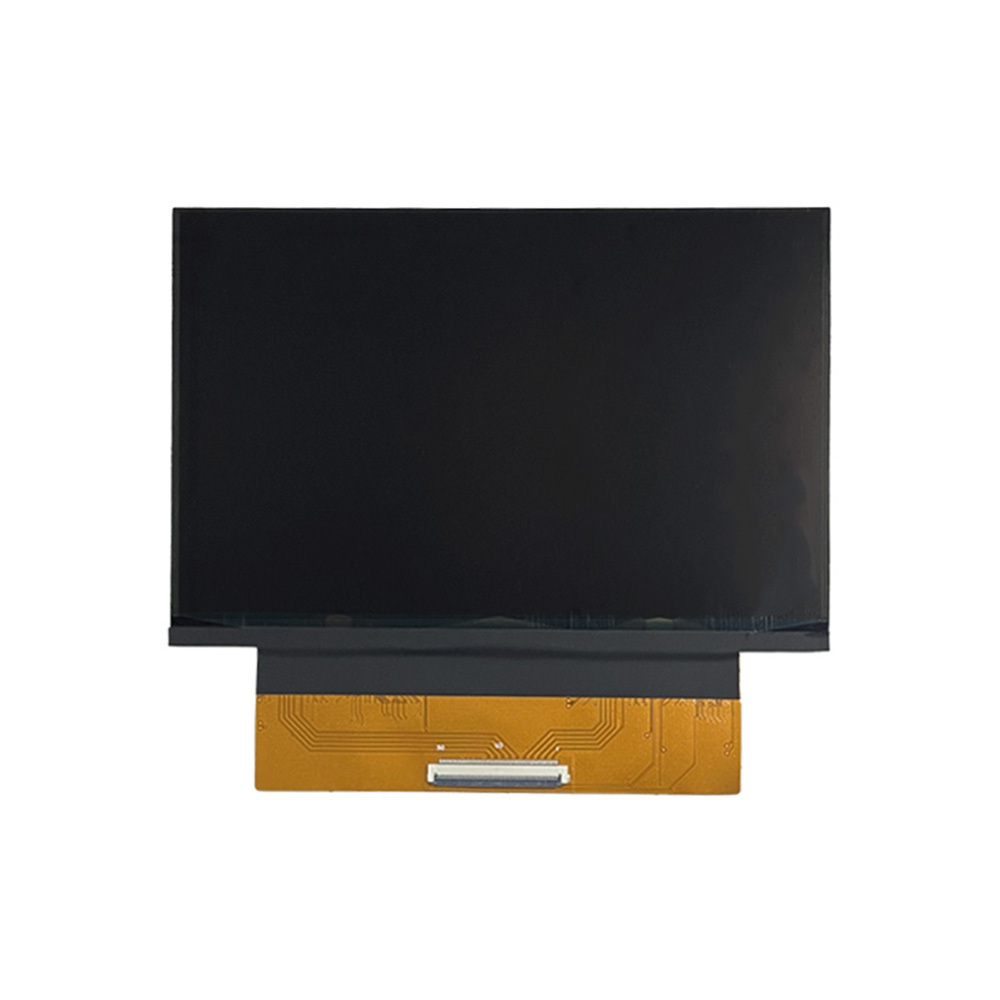

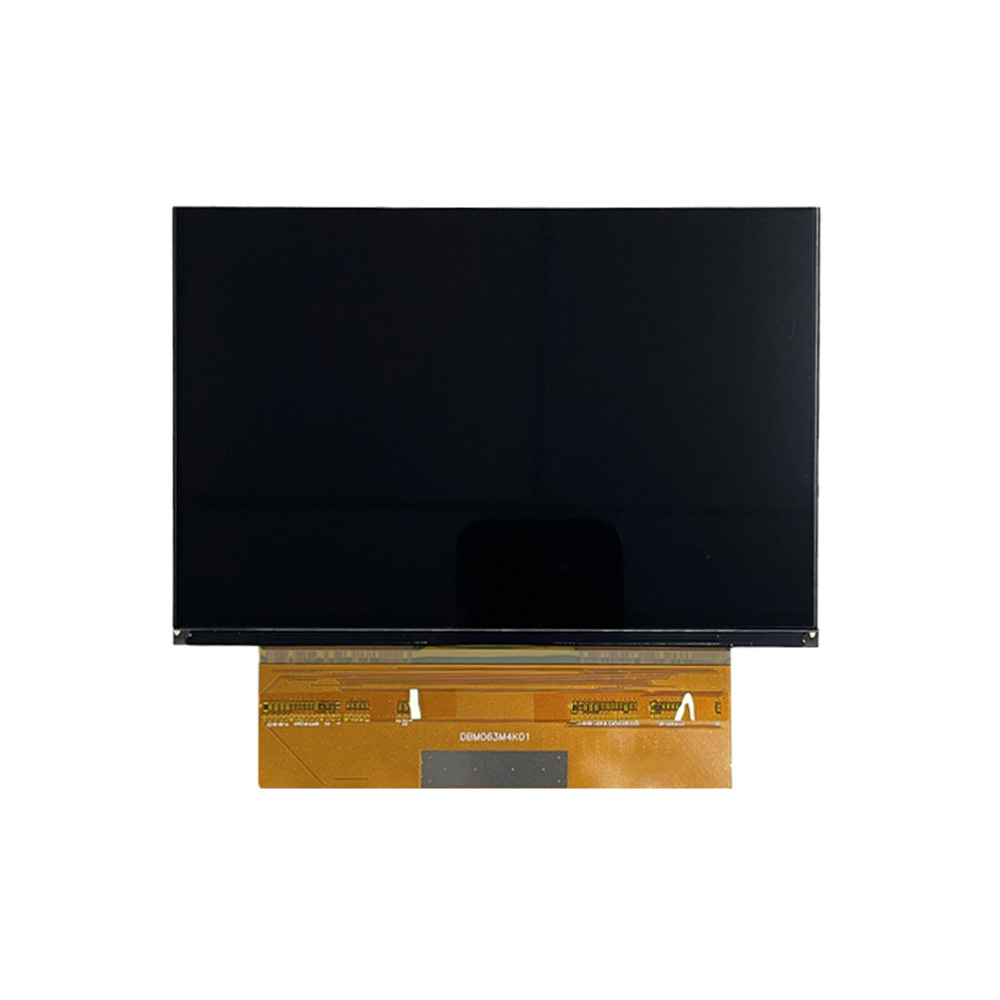

As resin 3D printing technology continues to evolve, users demand higher print accuracy, faster curing speed, and longer screen lifespan. This 6.3 inch 4K mono LCD display is specifically designed for advanced SLA, DLP-assisted, and MSLA 3D printers, delivering ultra-sharp imaging with a resolution of 3840×2400 pixels.
Built with monochrome TFT technology, this display allows significantly higher UV transmittance compared with standard RGB LCDs, enabling shorter exposure times and better printing efficiency. With an 8-lane MIPI interface, compact mechanical structure, and industrial-grade reliability, it is an excellent solution for next-generation desktop and professional resin printers.

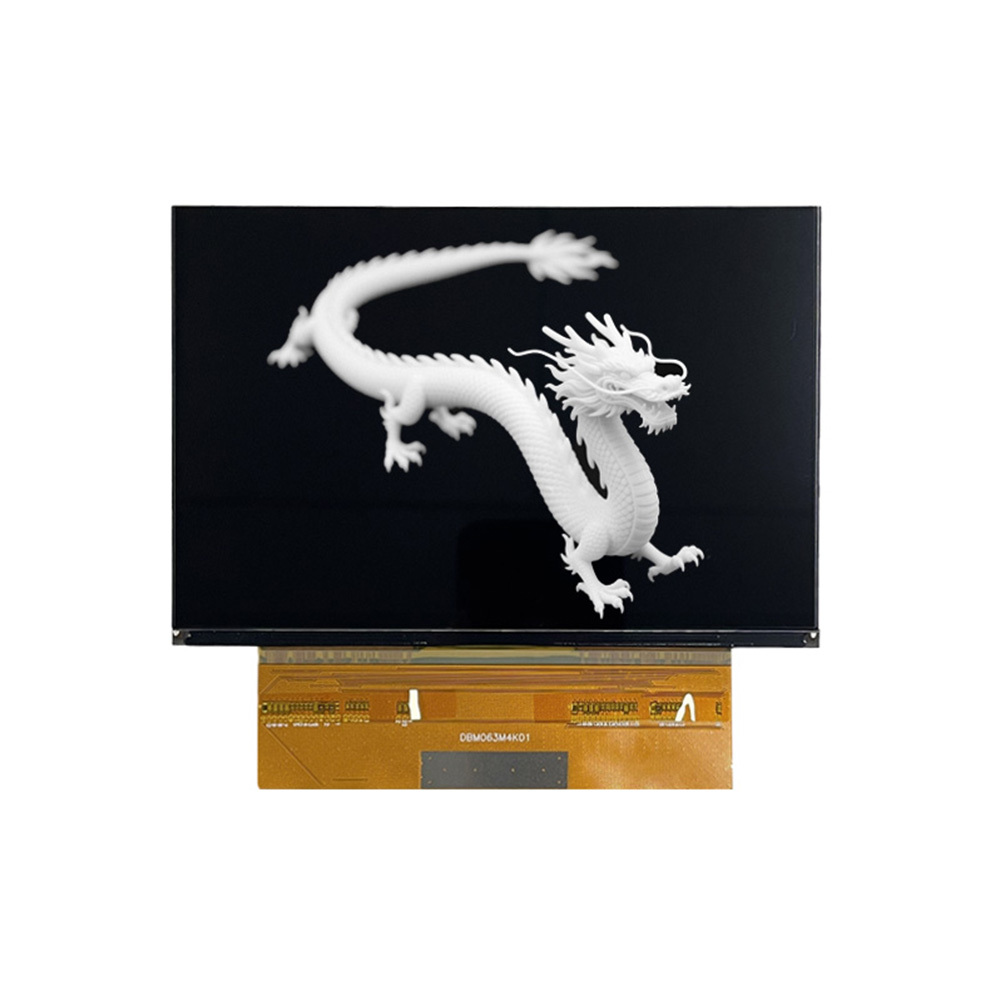

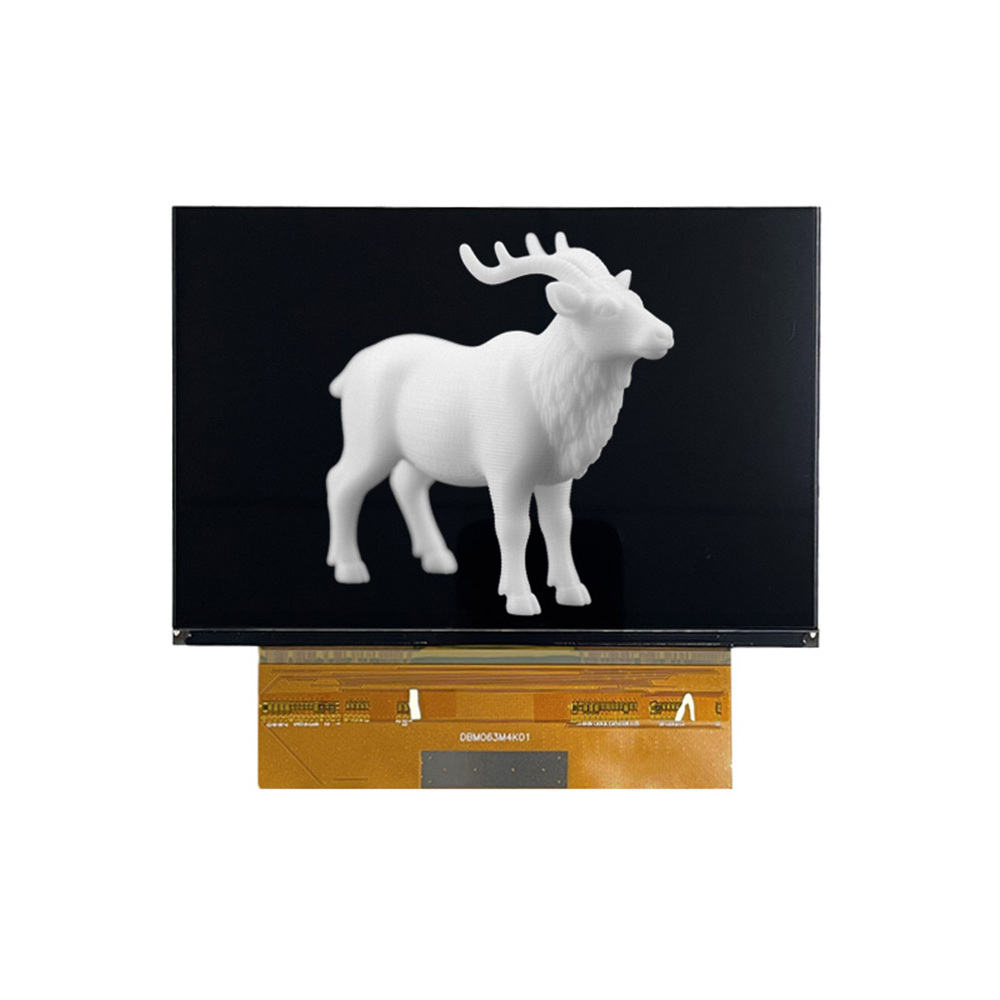

With more than 9.2 million pixels, this screen provides highly detailed mask images for resin curing. Fine edges, smooth surfaces, and precise structures become possible even for complex models.
Compared with RGB LCD screens, monochrome LCD panels offer:
This panel is optimized for UV resin printers requiring stable grayscale masking and continuous operation.
A total response time of 25ms helps reduce ghosting between layers and improves print transition speed.
With 85° viewing angle in all directions, the display ensures stable optical performance and easier integration.
At only 1.16mm thickness, the panel enables compact printer designs and efficient light engine assembly.
| Item | Specification |
|---|---|
| Product Type | TFT Mono LCD |
| Display Size | 6.3 Inch |
| Resolution | 3840 × 2400 |
| Active Area | 134.40 × 84.00 mm |
| Outline Dimension | 138.56 × 92.82 × 1.16 mm |
| Pixel Pitch | 0.034 × 0.034 mm |
| Interface | 8 Lane MIPI |
| Viewing Direction | Full Viewing Angle |
| Contrast Ratio | 400:1 Typ |
| UV Transmittance (405nm) | 7% Typ |
| Response Time | 25 ms |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
Traditional RGB LCD screens contain color filters that reduce UV light efficiency. This means slower print speeds and shorter display lifespan.
This 4K mono LCD for 3D printer removes RGB filters, allowing stronger UV transmission. As a result:
For OEM resin printer brands, this creates a competitive advantage in speed and print quality.
Suitable for dental models, aligners, surgical guides, and crowns requiring extreme precision.
Ideal for engineering prototypes with complex geometries and tight tolerances.
Reliable performance for laboratory and educational additive manufacturing systems.

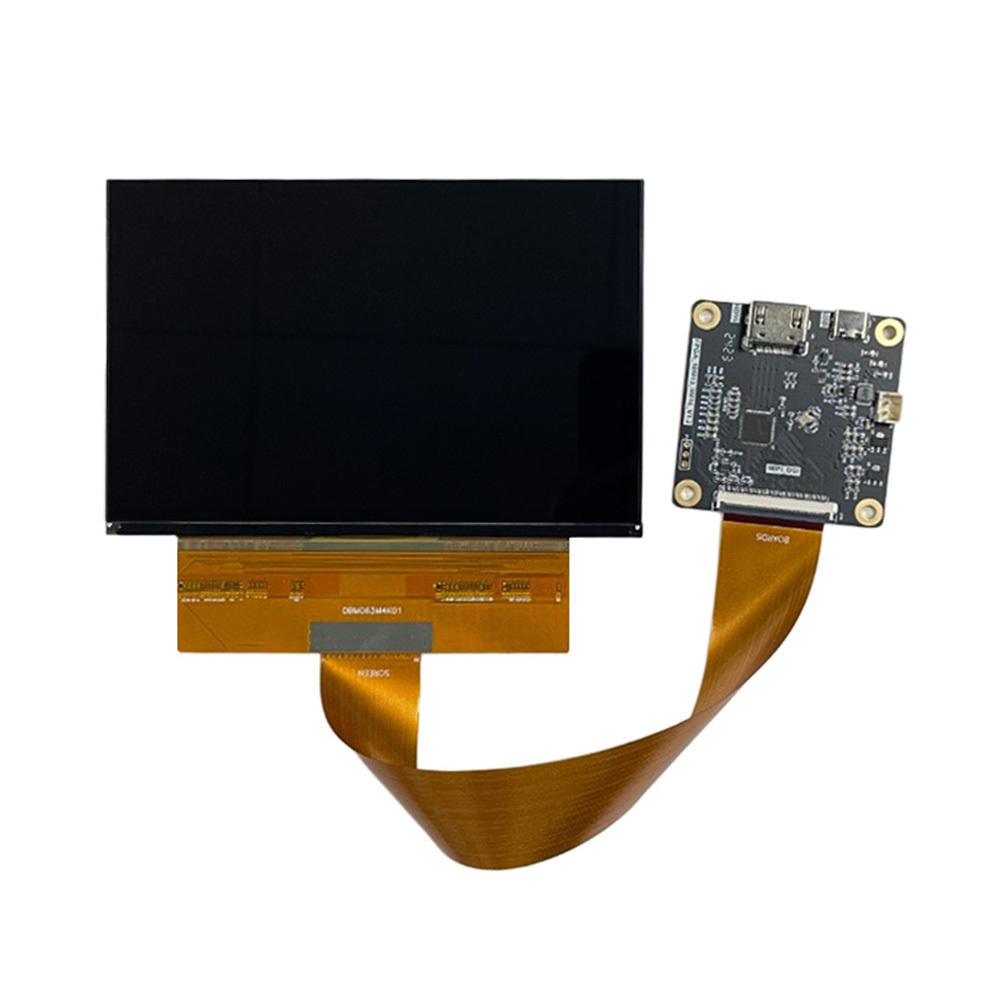

The module is engineered for easy installation into printer optical systems.
This 6.3 inch mono LCD module has been tested for demanding industrial environments, including:
These tests ensure dependable performance in continuous printer operation.
For OEM and printer manufacturers, customization options may include:
Yes. It is specifically ideal for MSLA and SLA resin printers using UV light curing systems.
Mono LCD offers faster exposure speed, longer life, and better UV transmittance.
The resolution is 3840×2400, commonly referred to as 4K class resolution.
This module uses an 8-lane MIPI interface for high-speed signal transmission.
Yes. Custom solutions are available depending on project requirements.
The module supports -20°C to 70°C operation.
APTUS provides professional display solutions for industrial and 3D printing markets with strong engineering support and stable supply capability.
We support customers with:
