This 5-inch touch module for 3D printer systems is developed for applications where space efficiency and responsive control are equally important. Combining a compact form factor with a high-speed FSMC interface, it enables reliable and smooth interaction between users and embedded control systems.
With an 800×480 resolution, the display delivers sharp and balanced visuals within a smaller footprint, making it ideal for desktop 3D printers and compact industrial devices. The capacitive touch panel ensures accurate input recognition, allowing users to interact with system menus and controls effortlessly.
The integration of a parallel FSMC interface provides a significant advantage in data communication speed, ensuring that the display responds quickly to user input and system updates. This makes the module particularly suitable for real-time control environments such as 3D printing workflows.
The 5-inch size offers a space-saving solution without sacrificing usability. It is especially suitable for compact 3D printers, portable devices, and embedded control systems where installation space is limited.
Equipped with a 16-bit FSMC data bus, the module enables fast and efficient communication with the main controller. This architecture supports higher refresh rates and smoother interface transitions compared to serial communication methods.
The module integrates a capacitive touch panel designed for precise and consistent input detection. Its single-touch functionality is optimized for control interfaces, ensuring stable performance in industrial and consumer-grade equipment.
The module supports operation within a temperature range of 0°C to 70°C and uses a standard 5V power supply. Its robust structure and stable electrical design make it suitable for continuous operation in controlled environments.

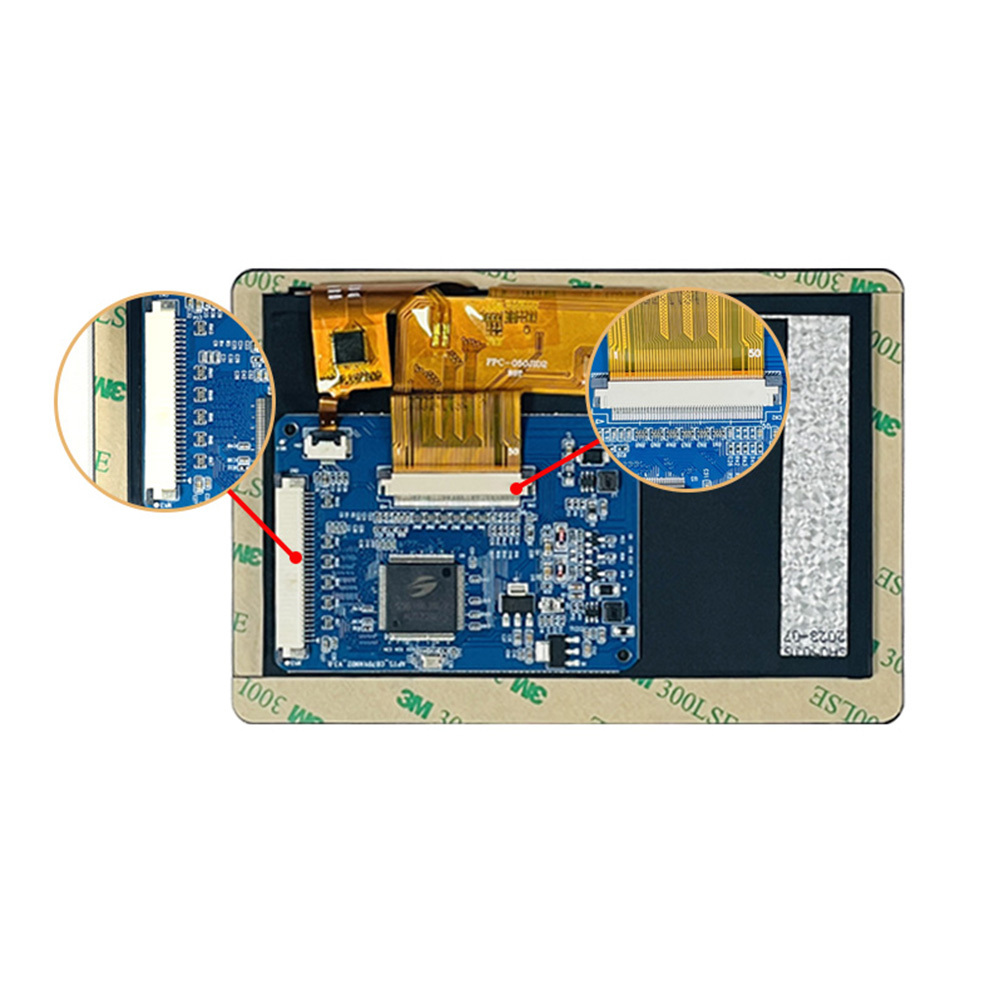

Using a standard 30-pin FFC connector with 1mm pitch, the module can be easily connected to embedded systems. The clear pin definition allows engineers to implement the module quickly into existing designs.
| Parameter | Specification |
|---|---|
| Product Type | Touch Module for 3D Printer |
| Screen Size | 5 Inch |
| Resolution | 800 × 480 |
| Touch Type | Capacitive Touch (Single Point) |
| Touch Controller | 1963 |
| Interface | FSMC (16-bit parallel) |
| Operating Voltage | +5V |
| Operating Temperature | 0°C to 70°C |
| Connector | 30-pin FFC (1mm pitch) |
| Outline Dimensions | 134.6 × 91.4 mm |
| Control Signals | NOE, NWE, A18, NE1 |
| Additional Interfaces | SPI Touch Signals, INT, RESET |
The FSMC interface allows direct parallel communication between the display and the MCU, significantly increasing data transfer efficiency. This reduces delays in screen updates and ensures a smoother user interface experience.
In 3D printer systems, this means faster response when navigating menus, adjusting parameters, or monitoring real-time printing data. It also enables developers to implement more advanced graphical interfaces without compromising system performance.
This module is well-suited for desktop and compact 3D printers, where space is limited but functionality cannot be compromised. It enables intuitive control of printing operations and system settings.
The FSMC interface ensures compatibility with a wide range of microcontrollers, making the module a practical choice for embedded development projects, especially those based on STM32 platforms.
Its smaller size and stable performance make it suitable for portable equipment requiring reliable touch interaction and clear display output.
For OEM and ODM applications, this module provides a flexible foundation for building customized human-machine interfaces with consistent performance.
The module adopts a compact mechanical layout with a durable structure suitable for embedded installation. The 30-pin FFC interface integrates both display and touch signals, simplifying hardware connections.
Its pin configuration includes FSMC data lines, control signals, and auxiliary touch communication lines, allowing efficient coordination between display rendering and touch input processing.
The inclusion of interrupt and reset signals further enhances system stability and simplifies firmware development.
This module offers a strong balance between size, performance, and integration efficiency. It is designed for projects that require a smaller display without sacrificing responsiveness or reliability.
The FSMC interface ensures that even in compact systems, users can achieve fast and smooth interaction. Its standardized design reduces development complexity and supports scalable production.
For manufacturers and developers working on 3D printer systems or embedded devices, this module provides a practical and efficient solution.
It is ideal for compact and desktop 3D printers. For larger machines, a bigger display may be preferred depending on UI requirements.
FSMC enables parallel data transfer, which increases communication speed and reduces latency, resulting in smoother interface operation.
It is commonly used with STM32 microcontrollers that support FSMC interfaces.
No, the module supports single-point capacitive touch, which is sufficient for most control panel applications.
Customization may include interface adjustments, mechanical changes, or firmware support depending on application needs.
A stable 5V power input is required for proper operation.
This FSMC-based 7-inch touch module for 3D printer systems provides a reliable and efficient solution for modern embedded interfaces.
