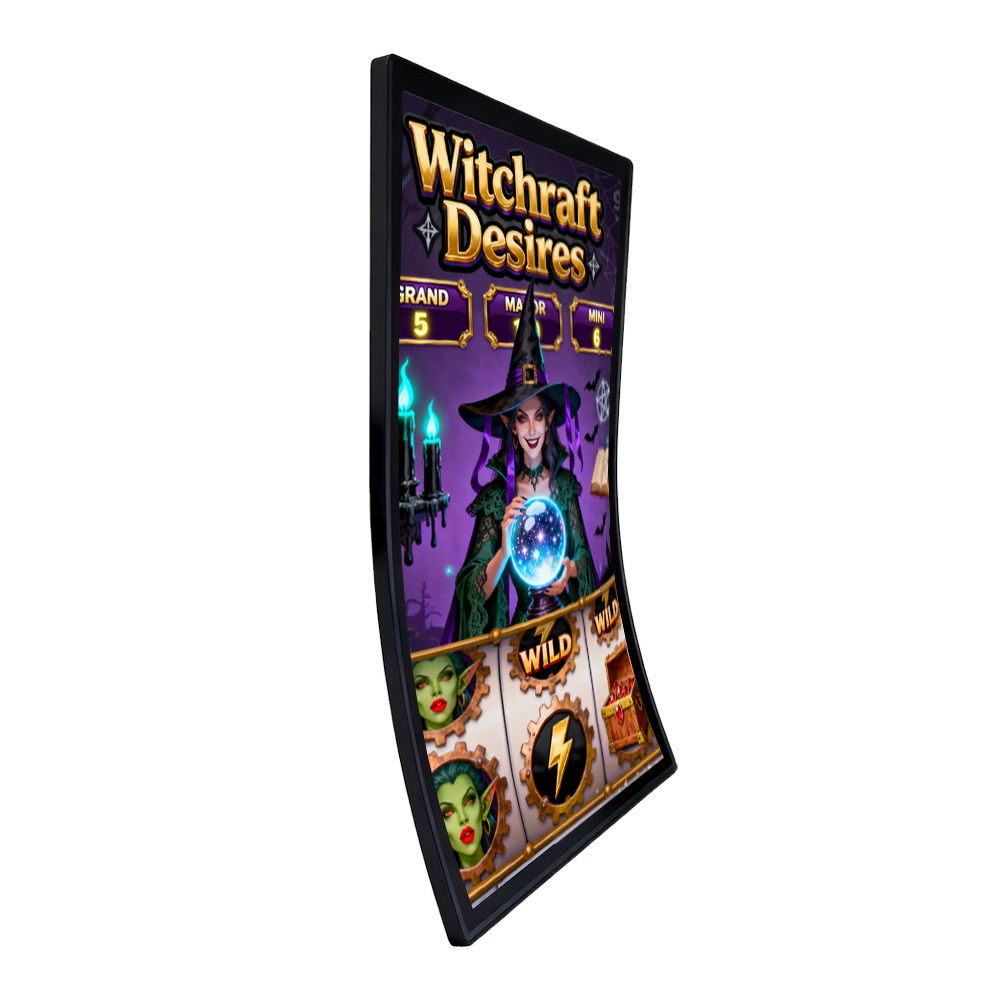

DJ490R15L51V50A 49" UHD R1500 J-Series curved gaming TFT-LCD module delivers true 3840×2160 4K resolution, reinforced structure, R1500 curvature, 500 nits brightness, and excellent color uniformity with zero mura. Flagship J-Series reinforced module for ultimate custom immersive gaming monitors. V-by-One 8-lane, IPS wide angle.
J-Series Reinforced Flagship 4K Immersion with Zero Mura – Built for the Largest Custom Gaming Builds
The DJ490R15L51V50A J-Series stands as the reinforced flagship 49-inch UHD curved TFT-LCD module engineered specifically for builders and integrators who demand unmatched structural integrity alongside breathtaking visual performance. Featuring true 3840×2160 4K resolution on a deep R1500 curvature and factory-calibrated excellent color uniformity with zero visible mura, this massive J-Series panel wraps you completely in the game world — every detail sharp, every color consistent across the entire enormous curve.
The J-Series variant incorporates a specially reinforced outline (1099 × 643 × 26 mm) for superior rigidity in large custom enclosures, while the integrated side-entry LED backlight delivers vibrant 500 nits typical brightness. The advanced IPS panel with anti-glare treatment and full 178° viewing angle ensures perfect visuals from any angle. Precision mechanical design and 26 mm slim profile make integration seamless into premium sim-racing rigs, multi-monitor walls, or professional esports installations.
This J-Series flagship module is the perfect foundation for building the largest and most rigid curved gaming monitors available today.
| Parameter | Specification | Unit / Advantage |
|---|---|---|
| Screen Diagonal | 48.5" (49" class) | R1500 Curvature – J-Series flagship |
| Resolution | 3840 × 2160 UHD | True 4K on massive reinforced curve |
| Active Area | 1051.2 (H) × 608.8 (V) | mm |
| Pixel Pitch | 0.27963 × 0.27963 | mm |
| Contrast Ratio | 1100 : 1 (Typ.) | Deep gaming blacks |
| Brightness (White) | 500 (Typ.) | cd/m² – vibrant & clear |
| Color Depth | 1.07 Billion (10-bit) | Lifelike AAA colors |
| Response Time (G to G BW) | 9 ms (Typ.) | Smooth motion |
| Surface Treatment | Anti-Glare, Haze 3%, Hard Coating 2H | Low reflection |
| Viewing Angle (CR>10) | 178° all directions | IPS wide angle |
| Interface | V-by-One 8 Lane | High-bandwidth 4K |
| Power Consumption (Panel) | 88.3 W (Typ.) | Premium performance |
| Operating Temperature | 0 °C to +50 °C | Reliable gaming range |
| Storage Temperature | -20 °C to +60 °C | Worldwide shipping |
| Outline Dimension (J-Series) | 1099 (H) × 643 (V) × 26 (D) | mm – reinforced flagship build |
| Weight | 10.5 kg (Typ.) | Solid premium feel |
| Compliance | RoHS | Eco-friendly |
All values measured at 25 °C with standard test patterns. Supports 47–63 Hz (60 Hz typical) for smooth 4K gaming.
The DJ490R15L51V50A J-Series features a specially reinforced outline and 26 mm slim profile, delivering exceptional rigidity without added bulk — ideal for large custom curved chassis that must hold perfect shape under stress. At 49 inches with R1500 curvature, the panel creates total immersion: the game world wraps around your vision in stunning 4K detail. Zero mura ensures consistent brightness and color across the entire curve, eliminating any distraction during long competitive sessions.
The 500 nits brightness paired with anti-glare coating provides vibrant, clear visuals in any environment. The V-by-One 8-lane interface guarantees stable, low-latency 4K signals, while 10-bit color depth and 1100:1 contrast bring HDR games to life with cinematic depth. The J-Series mechanical precision makes this the top choice for professional builders.
The reinforced J-Series design and 26 mm thickness integrate flawlessly into curved enclosures or professional installations.
The DJ490R15L51V50A J-Series has passed comprehensive optical, environmental, and long-term reliability testing. Precise power sequencing and robust backlight design ensure years of flawless performance in demanding gaming environments.
Q: Is this suitable for 4K gaming at high frame rates? A: Yes! True 3840×2160 UHD resolution with fast 9 ms response time delivers smooth, tear-free gameplay at 60 Hz.
Q: Does it really have zero mura? A: Excellent color uniformity with strict J-Series factory calibration — zero visible mura across the entire massive curved screen.
Q: What makes the J-Series special? A: Reinforced outline (1099 × 643 × 26 mm) provides superior structural rigidity for large custom builds while maintaining slim 26 mm profile.
Q: What interface does it use? A: V-by-One 8 Lane — the professional standard for stable 4K curved gaming panels.
Q: Does it support HDR? A: Yes — 10-bit color depth, high contrast, and 7300K color temperature are fully HDR10 compatible.
The DJ490R15L51V50A J-Series reinforced UHD curved gaming module combines the largest screen size, true 4K resolution, R1500 curvature, zero-mura uniformity, and flagship J-Series strength in one powerful package.
Contact APTUS Display today for:
Elevate your gaming experience to flagship level with this premium 49" UHD R1500 curved TFT-LCD module J-Series — built for total immersion and reinforced durability.
