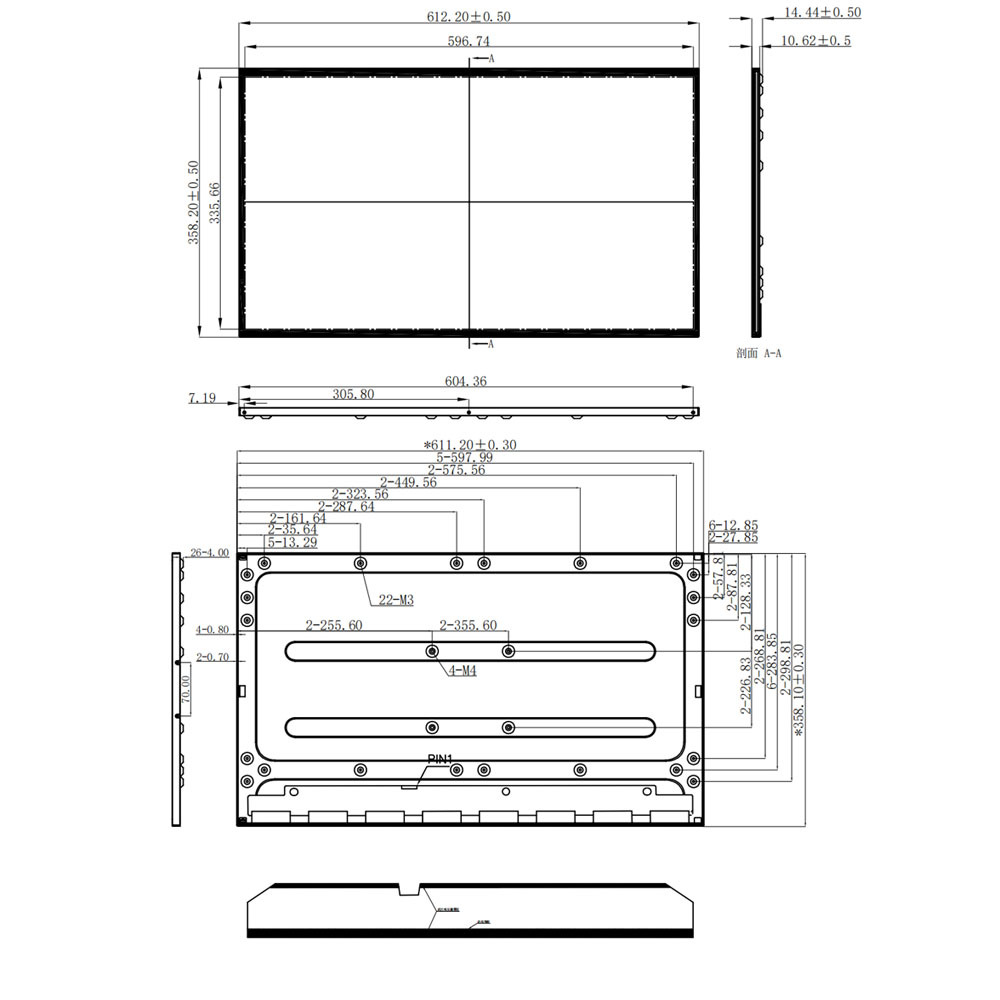

27 Inch 3840×2160 30Pin eDP 600nits UHD TFT LCD Display Module
The 27 inch 3840×2160 30Pin eDP TFT LCD display module is a high-resolution UHD display solution designed for professional monitors, workstation systems, control terminals, and advanced visualization equipment. With a 4K resolution of 3840×2160 pixels, this LCD module provides exceptional image clarity, accurate details, and smooth graphical performance for applications requiring high-definition display output.
Featuring a 30-pin eDP interface, this TFT LCD display supports high-speed digital signal transmission with excellent stability, making it suitable for modern display architectures that require compact design and reliable performance. The eDP interface helps simplify system integration while providing sufficient bandwidth for 4K UHD image transmission.
The 27 inch LCD display adopts an active matrix TFT structure with high pixel density, allowing users to display detailed graphics, complex interfaces, large amounts of information, and professional visual content with excellent clarity.
With a slim design, wide viewing angle, anti-glare surface treatment, and professional-grade performance, this 27 inch 4K LCD module is an ideal choice for customized monitors, desktop workstations, industrial control terminals, and process monitoring systems.
| Parameter | Specification |
|---|---|
| Product Type | 27 Inch TFT LCD Display Module |
| Display Size | 27 inch |
| Resolution | 3840 × 2160 pixels |
| Display Format | 16:9 UHD 4K |
| LCD Mode | TFT Active Matrix LCD |
| Pixel Arrangement | RGB Vertical Stripe |
| Interface Type | eDP |
| Connector | 30 Pin |
| Signal Transmission | eDP Digital Interface |
| Display Colors | 16.7M / 1.07B Colors (depending on configuration) |
| Display Mode | Normally Black |
| Surface Treatment | Anti-Glare |
| Viewing Direction | Wide Viewing Angle |
| Application Temperature | Standard Operating Temperature Range |
| Mechanical Design | Slim LCD Module Structure |
| Backlight Type | LED Backlight |
| Input Voltage | Standard LCD Module Power Supply |
The 27 inch 4K TFT LCD display module is designed for professional desktop computers and workstation systems that require high-resolution image performance.
With four times the pixel density of Full HD displays, the UHD resolution allows users to view detailed engineering drawings, software interfaces, financial dashboards, CAD designs, and professional content creation applications with greater accuracy.
For workstation users, the large 27 inch display area provides sufficient workspace for multitasking, while the high resolution ensures sharp text rendering and precise image reproduction.
This makes the display module suitable for:
The slim mechanical structure of this 27 inch LCD module makes it suitable for customized standalone monitors where space efficiency and premium visual performance are required.
Display manufacturers can integrate this LCD module into modern monitor products with customized housings, driver boards, and optional touch panel solutions.
The combination of a large viewing area, slim profile, and 4K resolution provides an excellent balance between design flexibility and display performance.
Typical applications include:
Modern control systems require displays that can clearly present complex information, graphical interfaces, and real-time operating data.
The 27 inch UHD LCD display module provides excellent visualization capability for control terminals by supporting detailed graphics, dashboards, charts, and user interface elements.
The high resolution allows system developers to create advanced HMI interfaces with more information displayed on a single screen, improving operational efficiency and user experience.
Suitable applications include:
Process controller systems often require stable and clear display solutions for monitoring production data, equipment status, and operational parameters.
The 27 inch 4K LCD module delivers detailed visual performance for process monitoring environments where accurate information presentation is important.
Its high resolution enables operators to view multiple data windows, graphs, and system indicators simultaneously, helping improve monitoring efficiency.
Applications include:
Aptus Display provides professional TFT LCD display solutions for global customers requiring reliable and customized display integration.
Unlike standard consumer monitor panels, Aptus Display LCD modules are designed for system developers, equipment manufacturers, and OEM customers who need flexible integration support.
Our customization capabilities include:
With extensive experience in LCD technology development, Aptus Display helps customers select the right display solution from prototype design to mass production.
The 27 inch 3840×2160 eDP LCD display module provides an excellent combination of resolution, reliability, integration flexibility, and professional display performance.
This display module features a 3840×2160 UHD 4K resolution, providing highly detailed images and sharp text suitable for professional applications.
The display uses a 30-pin eDP interface, which provides high-speed digital signal transmission and reliable connection performance for UHD display systems.
Yes. Aptus Display supports customization services including touch panel integration, cable design, driver board solutions, and mechanical structure customization.
Yes. The 27 inch 4K resolution makes it suitable for professional workstation monitors used in engineering, design, data analysis, and other high-resolution applications.
Yes. The high-resolution display capability makes it suitable for control terminals, HMI systems, process monitoring equipment, and visualization platforms.
eDP provides a compact digital connection with high bandwidth, lower cable complexity, and stable signal transmission, making it widely used in modern high-resolution display systems.
Aptus Display is a professional TFT LCD display manufacturer specializing in customized LCD module solutions for global customers.
The company provides a wide range of display products including TFT LCD modules, touch display solutions, customized display assemblies, and related integration services.
With strong engineering capabilities and experience in display development, Aptus Display supports customers across different industries with reliable, flexible, and application-specific display solutions.
From initial concept development to volume production, Aptus Display works closely with customers to deliver optimized display products that meet project requirements.
Looking for a 27 inch 3840×2160 30Pin eDP TFT LCD display module for your next project?
👉 Request a quote or sample
