Selecting a display for an industrial embedded project is rarely a cosmetic decision. Unlike consumer electronics, where display choice is often driven by appearance or branding, industrial systems demand predictable behavior, stable performance, and long-term reliability.
Engineers working on control systems, industrial equipment, or embedded HMIs must evaluate displays as part of a broader system architecture. Resolution, interface type, power requirements, and integration complexity all influence whether a display will perform reliably throughout the system’s lifecycle.

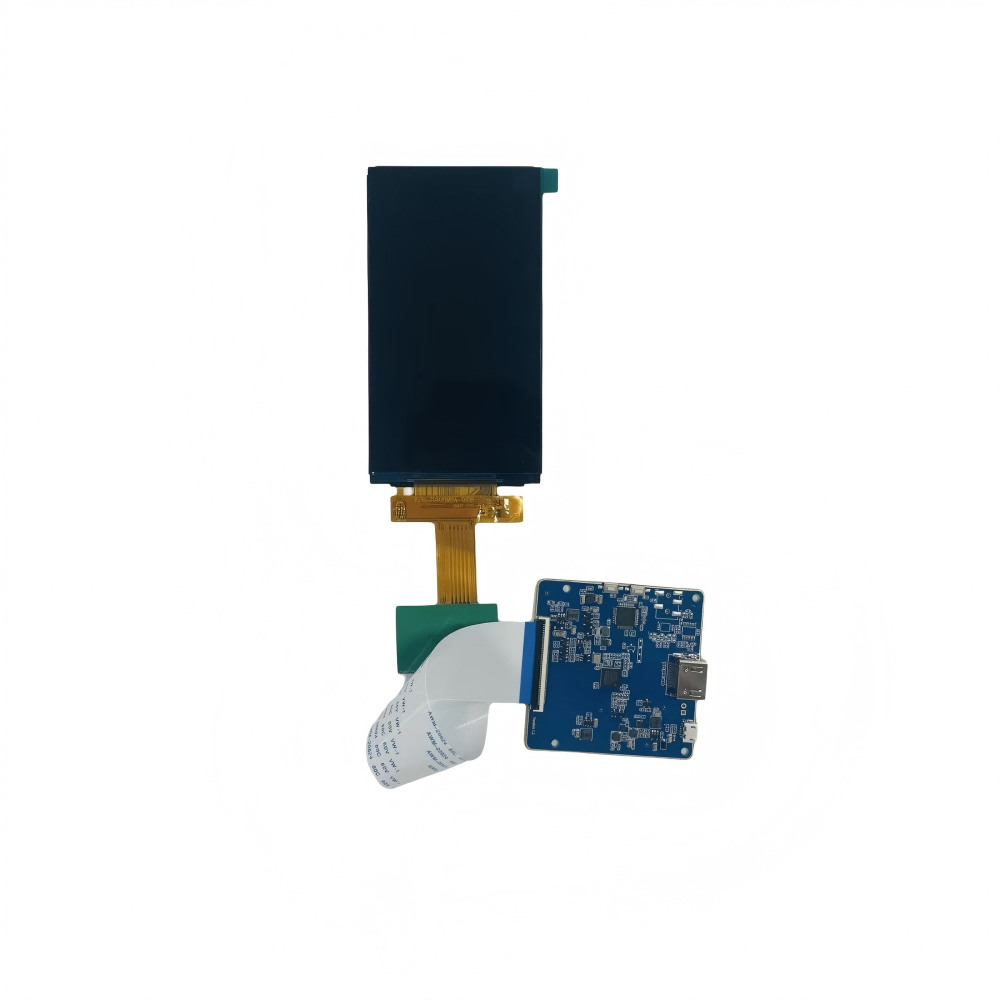

Among compact industrial displays, 5-inch LCD modules with a 780×1280 resolution are frequently selected because they align well with the constraints of embedded control platforms. A representative example is the 5-inch 780×1280 MIPI 30-pin industrial LCD module, which reflects common design priorities in modern industrial projects.
This article examines the engineering considerations that guide display selection in industrial embedded systems, with a focus on 5-inch MIPI-based LCD modules.
In industrial projects, a display cannot be evaluated in isolation. It interacts with:
The processing platform (MCU or SoC)
The operating system or firmware
The power architecture
Mechanical housing and enclosure constraints
A display that looks suitable on paper may introduce integration challenges if it does not align with the system’s electrical and software capabilities.
For this reason, display selection should be approached as a system-level decision, not merely a UI choice.
Industrial user interfaces typically prioritize clarity and efficiency rather than visual richness. The goal is to present essential information clearly, without overwhelming operators.
A 780×1280 resolution allows designers to:
Display structured lists of parameters
Present alarms and status indicators clearly
Organize menus vertically for quick scanning
Higher resolutions may increase UI flexibility, but they also:
Increase memory usage
Require more powerful graphics processing
Add complexity to driver support
For many industrial embedded platforms, a moderate resolution provides a more balanced solution.
The interface between the display and the processor has a direct impact on performance and integration complexity.
MIPI interfaces offer several practical benefits:
High-speed data transmission for responsive UI updates
Reduced pin count, simplifying PCB design
Lower EMI, important in industrial environments
Broad compatibility with modern embedded processors
These characteristics make MIPI particularly suitable for compact displays used in industrial control systems.
When selecting a display, engineers must ensure compatibility with the target processing platform.
Many industrial systems use embedded Linux or real-time operating systems. Display drivers must:
Support the target kernel or OS version
Provide stable long-term operation
Integrate cleanly with existing graphics stacks
A mismatch between display hardware and software support can significantly delay development timelines.
Power efficiency is another critical factor in industrial embedded systems.
Displays contribute to overall system power draw. Selecting a display with balanced brightness and efficient backlight design helps:
Reduce thermal buildup
Improve system stability
Extend component lifespan
Thermal management is especially important in enclosed industrial systems with limited airflow.
Industrial displays must withstand mechanical stresses not typically encountered in consumer devices.
Secure mounting to resist vibration
Proper alignment within enclosures
Protection from dust or contaminants
Mechanical integration should be considered early in the design process to avoid costly redesigns later.
Industrial systems are often deployed for many years. Selecting components with stable supply lifecycles reduces the risk of obsolescence.
Displays that are widely used in industrial applications are more likely to offer consistent availability and long-term support.
Engineers frequently encounter issues such as:
Selecting displays without verified driver support
Underestimating power or thermal requirements
Ignoring mechanical integration constraints
Addressing these factors early can prevent integration delays and reliability issues.
Selecting a display for an industrial embedded project requires careful evaluation of system architecture, interface compatibility, and long-term reliability. 5-inch MIPI LCD modules with a 780×1280 resolution continue to be chosen because they meet these requirements without unnecessary complexity.
By approaching display selection from an engineering perspective, designers can ensure their systems remain stable, maintainable, and effective throughout their operational lifespan.
