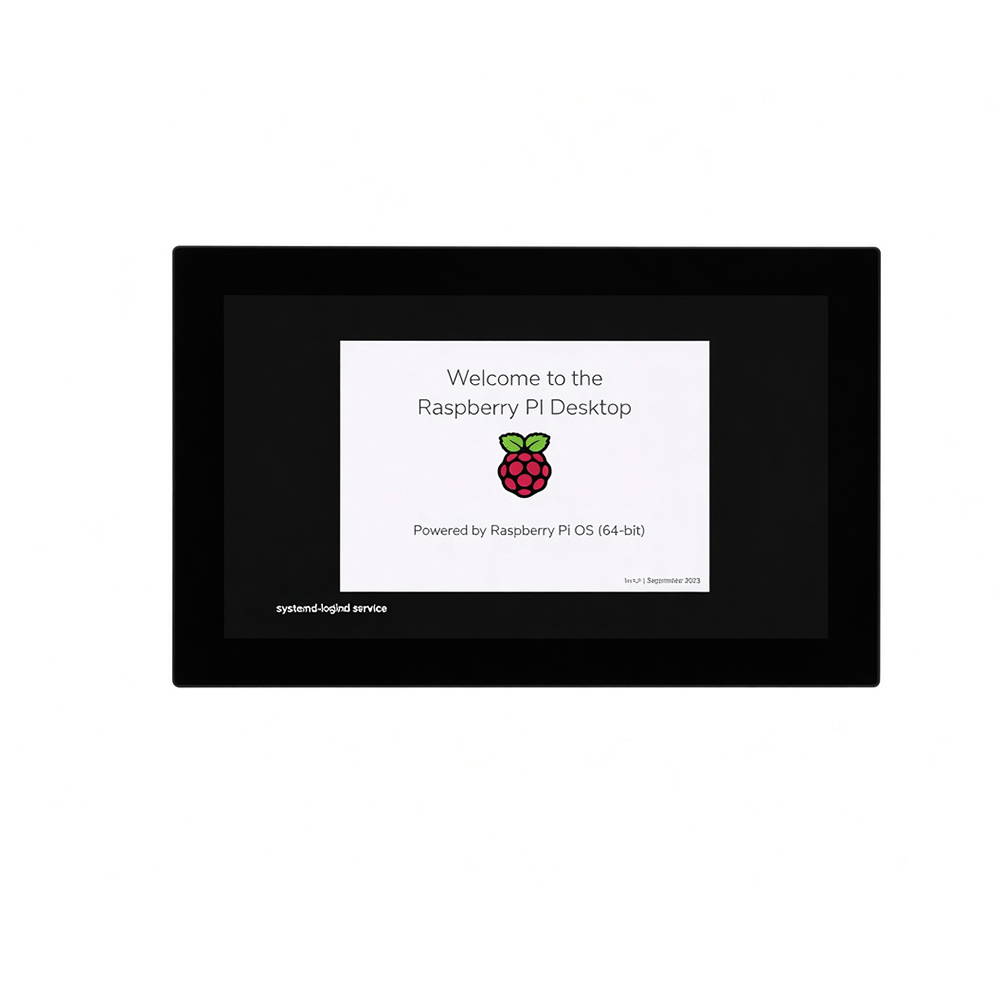

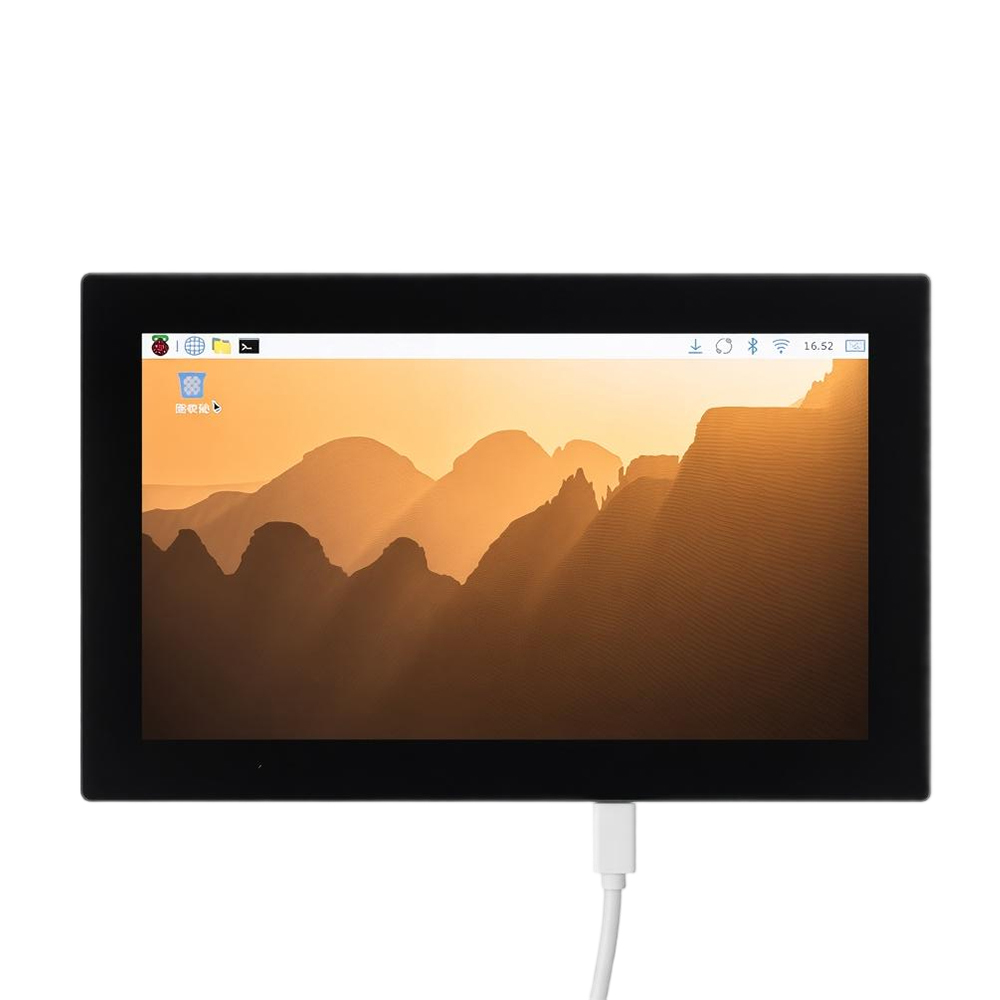

The A070RC01 is a 7-inch Raspberry Pi 5 LCD display development kit designed for engineers and equipment manufacturers who need a ready-to-integrate display assembly for their own software applications. Combining a 1024 × 600 LCD panel, capacitive touch functionality, a Raspberry Pi-compatible driver board design, and a metal enclosure, it provides a practical foundation for building customized embedded interfaces.
With its 7-inch display area, the A070RC01 offers more space for operating menus, equipment parameters, measurement data, and graphical controls than smaller display modules. Its 1024 × 600 resolution supports structured interface layouts for applications that need to present several types of information on one screen.
The A070RC01 is supplied as a basic integrated display development kit. The display-side hardware is assembled into a compact unit, allowing developers to concentrate on application software, system functions, and product integration rather than starting with a bare LCD panel.

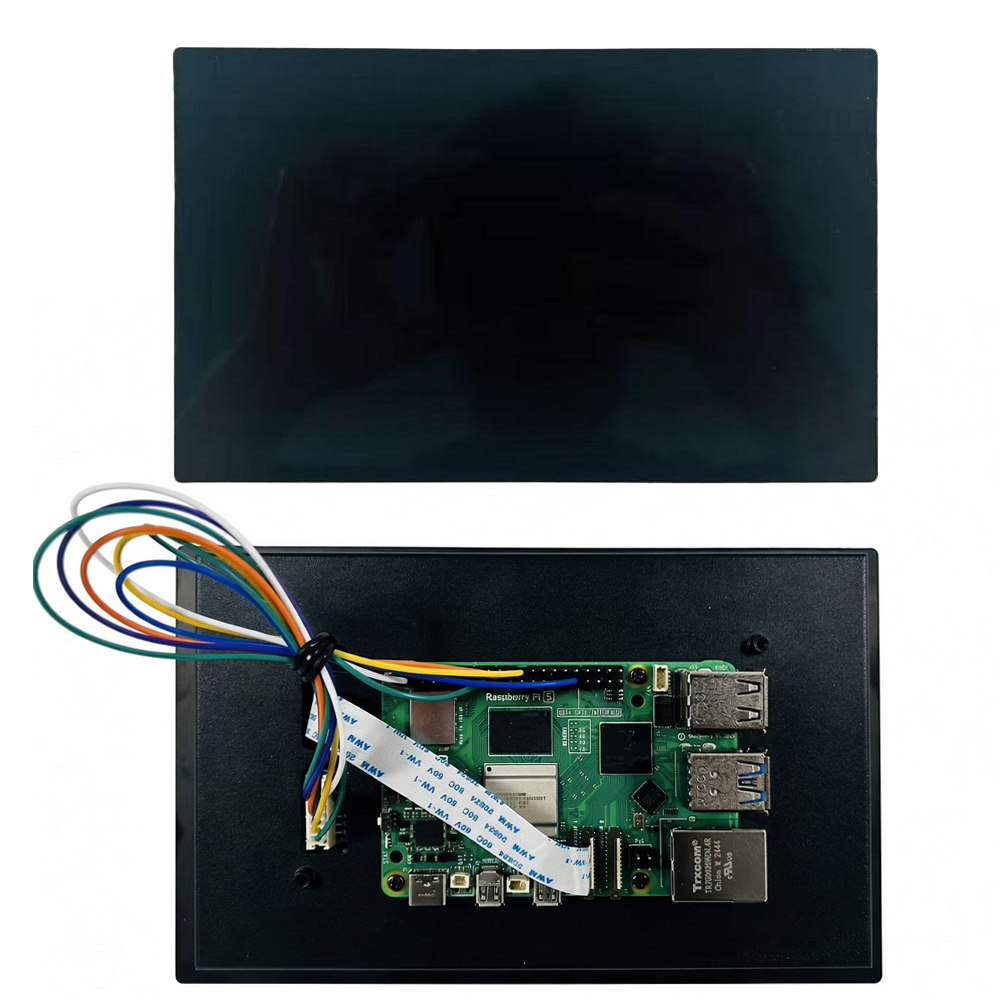

Important: The Raspberry Pi 5 motherboard is not included in the sales package. Customers must provide a compatible Raspberry Pi 5 board separately. After completing the required hardware connections and software configuration, developers can create applications according to their own functional requirements.
The A070RC01 is suitable for evaluating industrial HMI systems, equipment monitoring interfaces, IoT control terminals, laboratory instruments, and other embedded products requiring a dedicated touch display.
A larger workspace for graphical interfaces
The 7-inch panel provides additional room for dashboards, parameter lists, status indicators, and touch-operated menus. Developers can organize essential information into a more accessible layout for their intended users.
Integrated display hardware
The basic assembly combines the LCD module, capacitive touch panel, Raspberry Pi-compatible driver board design, and metal housing. This provides a more organized starting point for hardware integration than a bare display panel.
Support for customer-developed software
The kit allows developers to build their own application interfaces and functions on a compatible Raspberry Pi 5 platform. Potential software projects include monitoring dashboards, equipment configuration pages, data visualization tools, and dedicated control interfaces.
A practical metal enclosure
The matte black metal housing gives the display assembly a professional appearance and a defined mechanical structure for installation into equipment or a custom enclosure.
Designed for equipment-oriented applications
With a specified operating temperature range of -20°C to +70°C and a typical brightness specification of 350 cd/m², the A070RC01 can be evaluated for a variety of indoor and controlled-environment applications.
The following table provides the main technical details for product evaluation, system design, and purchasing reference.
| Category | Parameter | Specification |
|---|---|---|
| Product Information | Model Number | A070RC01 |
| Product Information | Product Type | Raspberry Pi 5 LCD Display Development Kit |
| Display | Diagonal Size | 7 inches |
| Display | Resolution | 1024 × 600 pixels |
| Display | Active Area | 154.2144 × 85.92 mm |
| Display | Display Colors | 16.7 million (8-bit) |
| Display | Brightness | 350 cd/m² |
| Display | Response Time | 30 ms |
| Display | Pixel Arrangement | RGB stripe |
| Display | Viewing Direction | All O’clock |
| Touch | Touch Technology | Capacitive |
| Interface | CN1 | 22-pin FPC/FFC interface |
| Interface | CN2 | PH2.0, 7-pin interface for designated backlight and touch-related signals |
| Compatibility | Host Computer | Compatible Raspberry Pi 5 motherboard required |
| Electrical | Overall Power Consumption | ≤ 5 W |
| Environmental | Operating Temperature | -20°C to +70°C |
| Environmental | Storage Temperature | -30°C to +80°C |
| Environmental | Relative Humidity | ≤ 90% |
| Mechanical | Overall Dimensions | 180.2 × 112 × 12.6 mm |
| Mechanical | Weight | 289 g |
| Mechanical | Housing Material | Metal |
| Mechanical | Housing Color | Matte black |
| Package | Raspberry Pi 5 Motherboard | Not included |
Note: Please consult the official A070RC01 datasheet for the complete package contents, connector pin assignments, mechanical drawings, and installation requirements. Confirm system compatibility before final integration.
A display development kit should provide a useful hardware foundation without unnecessarily restricting the software that customers can create. The A070RC01 is intended for projects where the display assembly is integrated into a larger system and the application is developed according to the product's intended functions.
After connecting a compatible Raspberry Pi 5 motherboard, developers can configure the required operating system, display support, and touch input environment. The application can then be designed around the actual needs of the equipment or device.
For example, a machine manufacturer might develop an interface showing operating status, adjustable parameters, maintenance information, and warning messages. An IoT equipment developer could present sensor measurements, device settings, and connection status. A laboratory equipment manufacturer might use the same hardware platform to display readings, test procedures, and configuration options.
Depending on the selected software environment and available driver support, suitable development approaches may include Python-based graphical applications, Qt interfaces, or browser-based user interfaces.
The 7-inch display area gives designers more freedom to arrange these functions without relying excessively on nested menus or crowded layouts. The final interface remains under the customer's control, allowing the same display hardware to support different applications through different software implementations.
APTUS provides the basic integrated display kit. Customers supply the Raspberry Pi 5 motherboard and develop or deploy the software required for their projects.
The A070RC01 can be considered for industrial equipment that requires a local operator interface. The 7-inch format provides space for machine status, operating parameters, maintenance menus, and other information used during equipment operation.
Manufacturers can develop application-specific screens that match their machine functions and operator workflows. Capacitive touch input supports direct interaction with graphical controls, while the metal housing provides a structured assembly for equipment integration.
Potential applications include machine configuration terminals, production equipment interfaces, test system controls, and local monitoring panels. Final suitability depends on the complete system's environmental, electrical, and mechanical requirements.
Monitoring systems often need to present several values at once. The A070RC01 can support custom interfaces that combine numerical readings, status indicators, charts, and configuration controls within one display area.
For example, developers can design dashboards for temperature monitoring, equipment performance, test measurements, or operating conditions. The Raspberry Pi 5-based software can organize the information according to the intended application and user requirements.
The actual monitoring functions depend on the connected sensors, data sources, peripheral hardware, and customer-developed software.
Connected equipment may require a local interface for configuration, device status, and data visualization. The A070RC01 can be evaluated for Raspberry Pi 5-based IoT gateways, smart equipment controllers, and dedicated control terminals.
A custom application can display network information, sensor data, system notifications, and adjustable parameters. The larger display area is useful when users need to access multiple functions through a single local interface.
Laboratory and engineering systems often need an interface for measurements, operating modes, test settings, and result review. The A070RC01 can serve as the display assembly for customized instrument interfaces and test equipment prototypes.
The 1024 × 600 resolution gives developers space to present readings and controls in an organized layout. Its integrated construction can also simplify initial mechanical planning for equipment that requires a dedicated display.
For educational institutions, laboratories, and engineering teams, the A070RC01 offers a practical platform for exploring embedded Linux, graphical interface development, data visualization, and hardware-software integration.
Users can connect their own Raspberry Pi 5 board and build applications that demonstrate equipment control, sensor monitoring, interactive learning tools, or specialized research functions.
The development kit also supports early-stage product evaluation, allowing teams to test their software and user interface concepts before completing a final product design.
OEMs and product developers can use the A070RC01 to evaluate a touch-based interface during the prototype stage. The integrated display assembly provides a starting point for assessing screen layout, user interaction, mechanical fit, and application behavior.
Once the software and system requirements have been validated, manufacturers can determine whether the hardware configuration is appropriate for further engineering and production planning.
The A070RC01 is designed to reduce the initial work involved in integrating display-side hardware, but the complete system still requires correct host-board connections and software configuration.

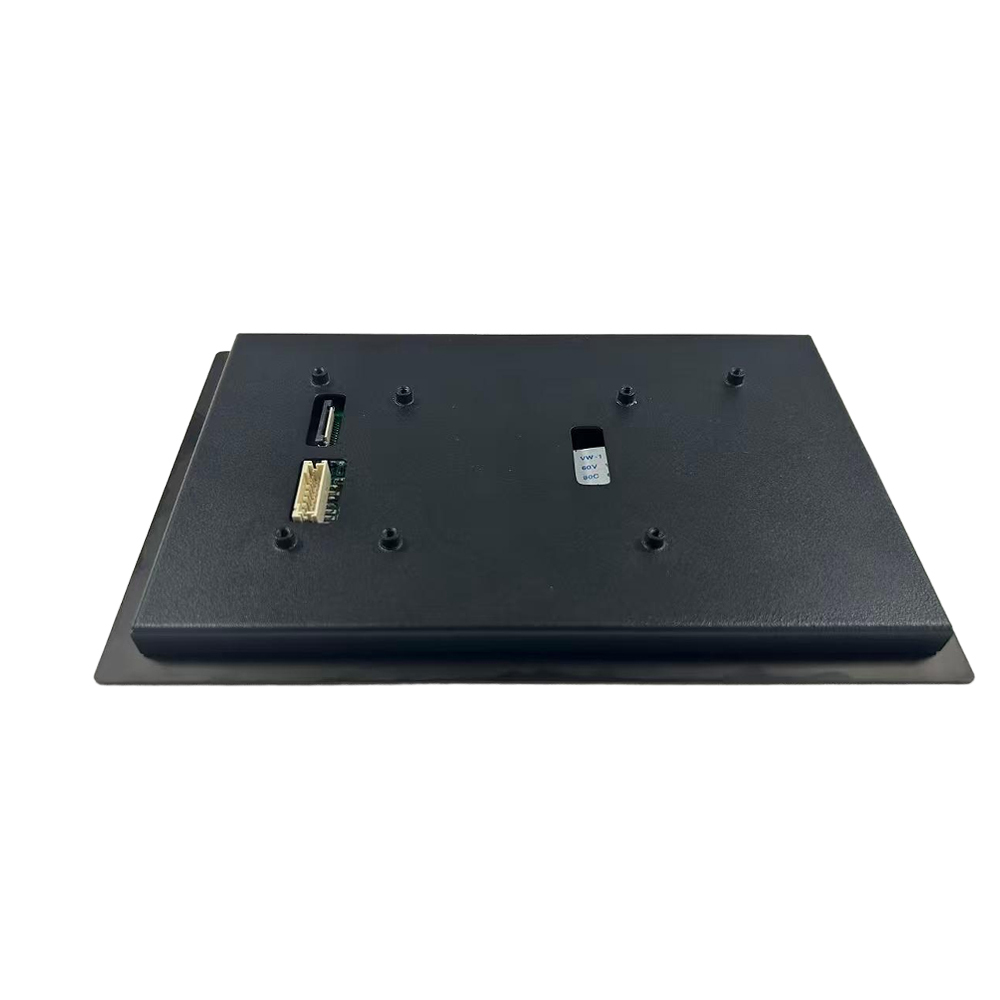

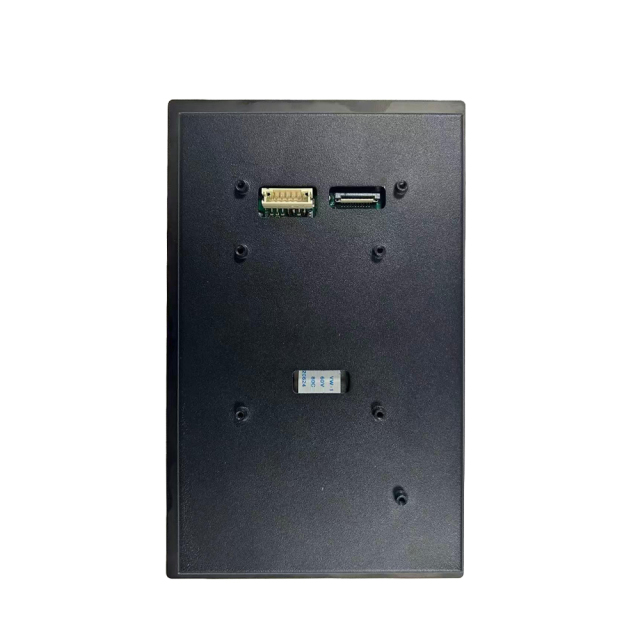

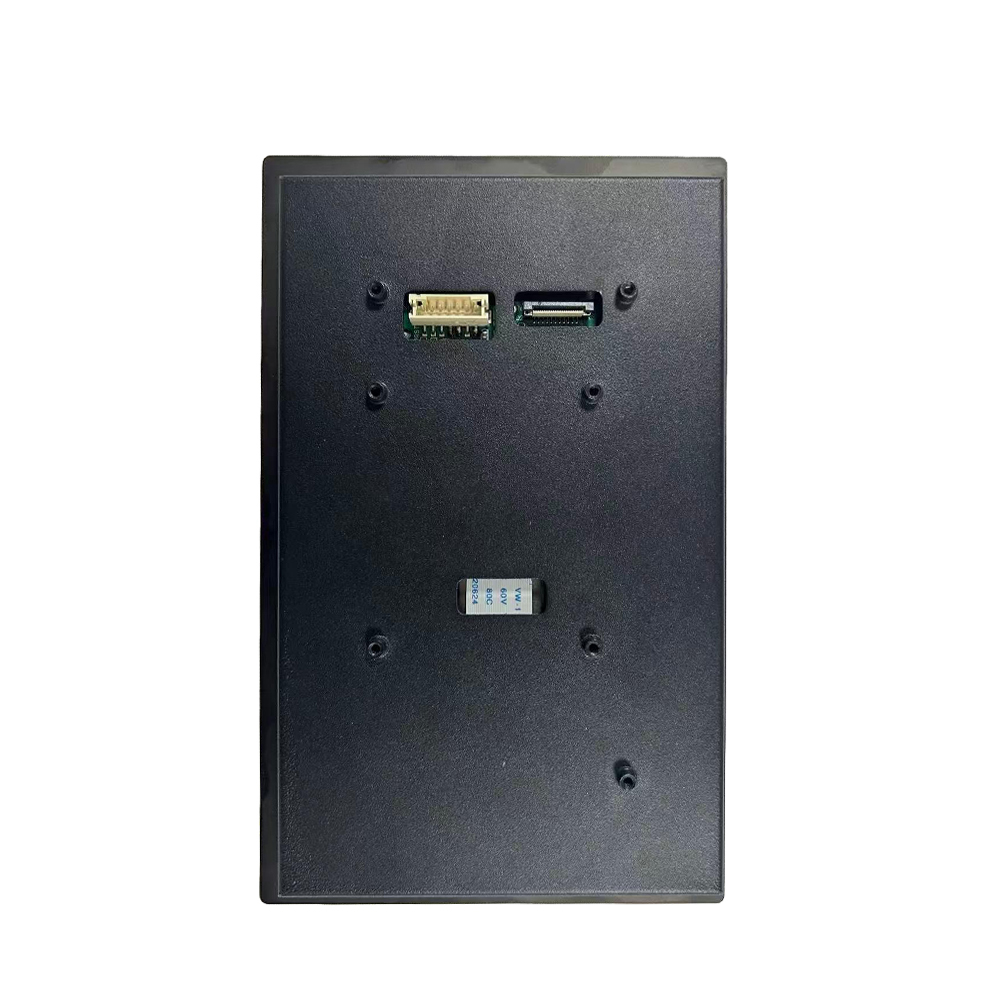

The assembly provides a 22-pin FPC/FFC connector and a 7-pin PH2.0 connector for designated display, backlight, and touch-related signals. Developers should follow the official wiring diagram and pin definitions instead of assuming that connector positions or signal assignments are interchangeable with other Raspberry Pi displays.
The Raspberry Pi 5 motherboard must be purchased separately. Before deployment, confirm the compatibility of the selected host board, power supply, operating system, display configuration, and touch input support.
Mechanical designers should also use the official outline drawing to plan mounting points, cable clearance, and enclosure openings. Although the display assembly has a specified operating temperature range of -20°C to +70°C, the complete product must meet the environmental limits of every installed component.
These checks help ensure that the display development kit is evaluated within the requirements of the intended application.
No. The sales package does not include a Raspberry Pi 5 motherboard. The A070RC01 is a basic integrated display development kit based on a Raspberry Pi-compatible driver board design. Customers must supply a compatible Raspberry Pi 5 board separately.
The A070RC01 has a resolution of 1024 × 600 pixels and an active area of 154.2144 × 85.92 mm. These specifications provide space for application interfaces that display multiple parameters, menus, and status indicators.
Yes. The kit is intended for customer-developed software applications. Once a compatible Raspberry Pi 5 board and the required software environment are configured, developers can create custom dashboards, equipment interfaces, control menus, and monitoring applications.
It is supplied as a basic integrated display development kit rather than a bare LCD panel. The specified assembly includes display-side hardware and a metal enclosure. The Raspberry Pi 5 motherboard is excluded. Refer to the official datasheet to confirm all package contents.
Yes. The A070RC01 incorporates a capacitive touch panel. Actual operation depends on the compatible hardware configuration, software drivers, and operating environment.
The specified brightness is 350 cd/m². This is suitable for many indoor and controlled-lighting applications. For installations exposed to direct sunlight or strong ambient light, evaluate whether a higher-brightness display is required.
The specified operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C. The complete system must also comply with the operating limits of the Raspberry Pi board and other installed components.
Contact APTUS for the official product datasheet, mechanical outline drawing, connector information, and other available technical documentation.
It can be evaluated for industrial HMI, equipment monitoring, embedded instruments, and other application-specific systems. Final suitability should be confirmed against the project's mounting, environmental protection, electrical compatibility, and reliability requirements.
Shenzhen APTUS International Co., Ltd. specializes in LCD display solutions for industrial and application-specific markets. Since 2014, the company has focused on LCD display development, manufacturing, and marketing, helping customers identify display hardware for equipment integration and customized products.
APTUS provides TFT LCD modules, touch panel solutions, LCD control boards, driver boards, cables, backlight solutions, and integrated display assemblies. Depending on project requirements, available customization options may cover display parameters, brightness, touch configuration, cable design, mechanical structure, and related hardware integration.
With an experienced R&D team and an ISO 9001 quality management system, APTUS supports customers with product selection, technical evaluation, prototyping, and production planning. Its engineering-oriented approach helps customers assess display solutions according to their intended applications and integration requirements.
For customers developing Raspberry Pi-compatible products, APTUS provides a hardware foundation that can be evaluated and combined with customer-developed software to create application-specific systems.
Looking for a 7-inch 1024 × 600 Raspberry Pi 5 LCD display development kit for industrial equipment, IoT systems, test instruments, or a customized embedded product?
Contact APTUS to discuss the A070RC01, request technical documentation, or evaluate the display assembly for your project.
