The A050RC01 5-inch Raspberry Pi 5 LCD display development kit is a compact, integrated display assembly designed for embedded systems, industrial equipment, and customized software applications. Featuring a 4.96-inch LCD panel with a resolution of 480 × 854 pixels, capacitive touch functionality, and a matte black metal enclosure, this development kit provides a practical hardware foundation for engineers and product manufacturers developing their own Raspberry Pi-based solutions.
The A050RC01 is built around a Raspberry Pi-compatible driver board design and is intended to work with a compatible Raspberry Pi 5 motherboard. The display assembly integrates the LCD module, capacitive touch panel, driver hardware, enclosure, and designated connection interfaces, helping developers simplify display-side hardware integration.

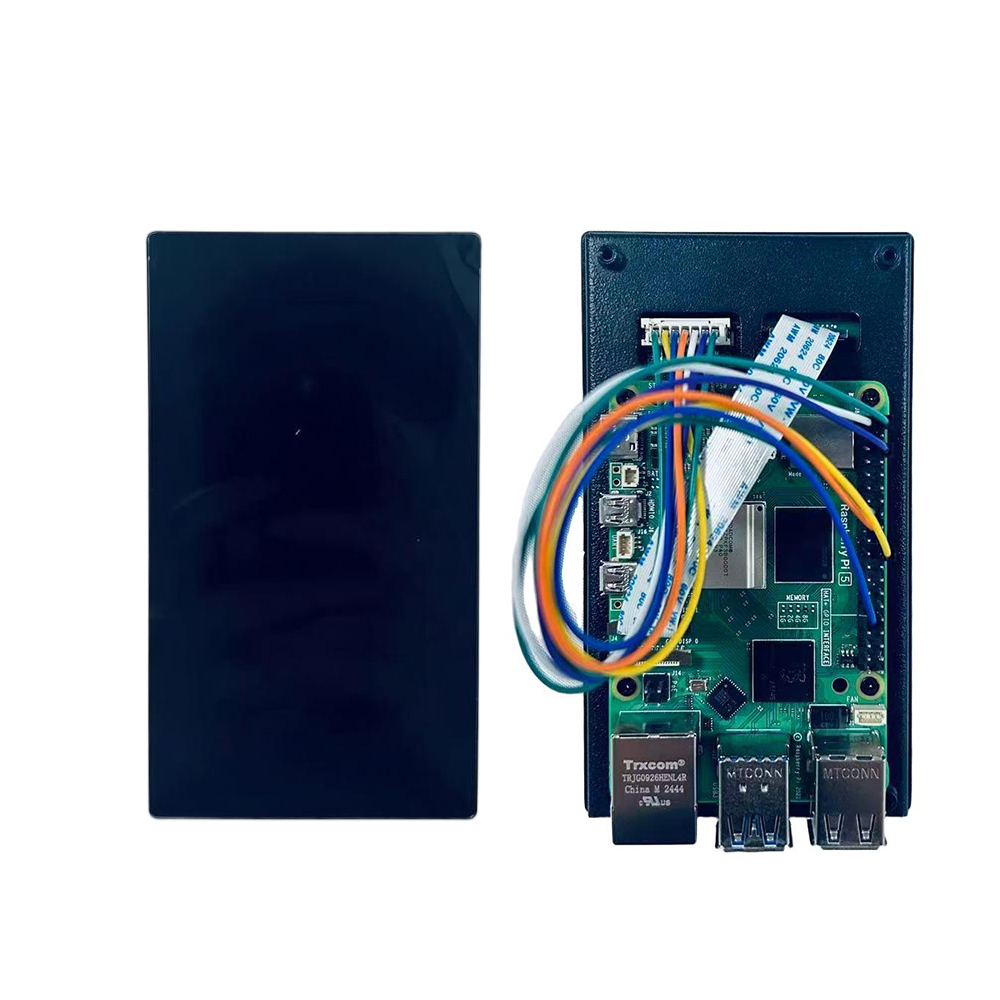

Please note: The Raspberry Pi 5 motherboard is not included in the product package. Customers must provide their own compatible Raspberry Pi 5 board to operate the system and develop their applications.
Unlike a display-only LCD module, the A050RC01 is supplied as a basic integrated hardware kit. This gives developers a convenient starting point for building customized user interfaces, monitoring dashboards, equipment control panels, and other application-specific software. The hardware provides the display foundation, while the customer retains control over application logic, interface design, and software functions.
With a typical brightness of 400 cd/m², a specified operating temperature range of -20°C to +70°C, and overall power consumption of no more than 5 W, the A050RC01 is suitable for evaluating a wide range of embedded display applications.
5-inch-class LCD display: A 4.96-inch panel with a native resolution of 480 × 854 pixels.

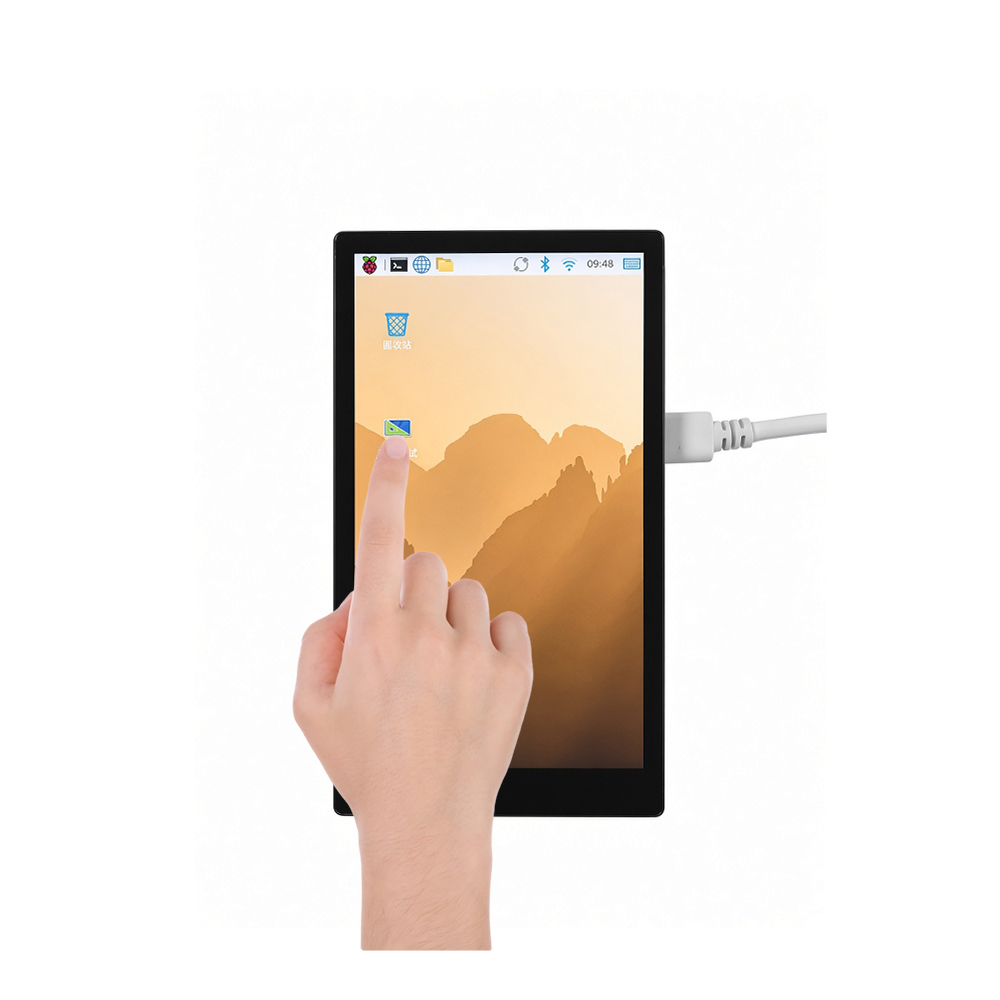

Capacitive touch panel: Enables touch-based interaction with customer-developed applications.
Raspberry Pi 5 compatibility: Designed around a Raspberry Pi-compatible driver board architecture for integration with a compatible Raspberry Pi 5 motherboard.
Integrated display assembly: Combines the LCD, touch panel, driver hardware, and metal enclosure into a basic development kit.
Custom software development: Allows developers to build application-specific interfaces and functions.
400 cd/m² brightness: Suitable for many indoor equipment interfaces and controlled lighting environments.
Metal housing: Provides a durable structure and a professional matte black appearance.
Compact mechanical design: Supports integration into embedded equipment, control panels, and instrument housings.
Defined operating temperature range: Supports operation from -20°C to +70°C under the specified conditions.
Flexible development configuration: Allows customers to use their own Raspberry Pi 5 motherboard without purchasing an additional board in the display kit.
The following table summarizes the principal display, interface, electrical, environmental, and mechanical specifications of the A050RC01.
| Category | Parameter | Specification |
|---|---|---|
| General | Model Number | A050RC01 |
| General | Product Type | Raspberry Pi 5 LCD Display Development Kit |
| Display | Diagonal Size | 4.96 inches |
| Display | Resolution | 480 × 854 pixels |
| Display | Active Area | 61.78 × 109.91 mm |
| Display | Display Colors | 16.7 million (8-bit) |
| Display | Brightness | 400 cd/m² |
| Display | Response Time | 30 ms |
| Display | Pixel Arrangement | RGB stripe |
| Display | Viewing Direction | All O’clock |
| Touch | Touch Technology | Capacitive |
| Interface | CN1 | 22-pin FPC/FFC interface |
| Interface | CN2 | PH2.0, 7-pin interface for designated backlight and touch-related signals |
| Compatibility | Host Board | Compatible Raspberry Pi 5 motherboard required |
| Electrical | Overall Power Consumption | ≤ 5 W |
| Environmental | Operating Temperature | -20°C to +70°C |
| Environmental | Storage Temperature | -30°C to +80°C |
| Environmental | Relative Humidity | ≤ 90% |
| Mechanical | Overall Dimensions | 70.7 × 124.7 × 12.6 mm |
| Mechanical | Weight | 134 g |
| Mechanical | Housing Material | Metal |
| Mechanical | Housing Color | Matte black |
| Package | Raspberry Pi 5 Motherboard | Not included |
Note: Please refer to the official A050RC01 datasheet for connector pin assignments, installation details, and the complete package contents. System compatibility should be verified against the selected Raspberry Pi 5 configuration.
The A050RC01 is designed for customers who need a defined display hardware platform but want the freedom to develop their own software applications. Rather than purchasing a display panel and assembling every display-side component independently, developers can begin with an integrated LCD and driver-board assembly.
After connecting a compatible Raspberry Pi 5 motherboard and configuring the required operating environment, users can develop software that matches their intended product functions. The interface may include operating menus, real-time data displays, parameter settings, equipment status indicators, alarms, or other application-specific features.
Depending on the software environment and available driver support, developers may choose suitable frameworks such as Python-based graphical interfaces, Qt applications, or browser-based dashboards. The appropriate implementation depends on the operating system, system architecture, required performance, and intended user experience.
This separation between hardware and application software is particularly valuable for OEMs and equipment manufacturers. The display hardware can serve as a common platform while different software applications support different equipment models or customer requirements.
APTUS supplies the basic display development kit; customers provide the Raspberry Pi 5 motherboard and develop or deploy their own application software. This arrangement offers flexibility during prototyping, functional testing, and early-stage product development.
The A050RC01 can be evaluated for compact human-machine interfaces used in industrial equipment, testing systems, and automated machinery. Its capacitive touch panel allows operators to interact with customized menus, configure operating parameters, and view equipment status.
A Raspberry Pi-based application can organize essential information into a clear interface, helping operators access the functions required for their daily tasks. Potential implementations include equipment control terminals, machine status panels, and maintenance interfaces.
For industrial integration, manufacturers should assess the complete system's temperature requirements, mounting structure, vibration exposure, electrical conditions, and enclosure protection.
IoT gateways and edge devices often require a local interface for displaying sensor measurements, connection status, configuration settings, and system notifications. The A050RC01 can serve as the display component in a Raspberry Pi 5-based IoT development project.
Developers can create customized dashboards for environmental monitoring, connected equipment management, local data visualization, or device configuration. The exact functions depend on the sensors, communication hardware, and software implemented in the complete system.
Compact measurement instruments and monitoring devices benefit from a display that combines information presentation with direct touch interaction. The A050RC01 can be considered for embedded instruments, laboratory equipment, data collection terminals, and specialized monitoring systems.
The 4.96-inch form factor provides space for numerical readings, operating status, configuration menus, and other application-specific information. The metal housing also offers a structured assembly for integration into a custom instrument enclosure.
Manufacturers developing connected devices may need a local interface for settings, operating modes, and visual feedback. With customer-developed software, the A050RC01 can function as a control interface for smart equipment, building-related control systems, and dedicated monitoring devices.
The touch interface allows users to navigate menus and adjust supported settings without relying entirely on external buttons or a separate computer display.
The A050RC01 provides a useful starting point for projects involving embedded Linux, graphical user interface design, data visualization, and hardware-software integration.
Students, researchers, and engineering teams can connect their own Raspberry Pi 5 board and develop applications that demonstrate equipment control, measurement interfaces, or interactive data presentation. The integrated display assembly reduces the need to build the display hardware from separate components before software development can begin.
For OEMs and product developers, the development kit can support early-stage hardware evaluation and application demonstrations. Teams can test interface concepts, refine software workflows, and assess the display assembly before finalizing a customized product design.
The same basic hardware platform may also be evaluated for different software applications, subject to system compatibility and the requirements of each target product.
Integrated display-side hardware
The A050RC01 combines the LCD panel, capacitive touch panel, driver hardware, and metal enclosure in a single assembly. This provides a more organized starting point than a bare LCD module when evaluating a complete display interface.
Freedom to build your own application
The development kit is intended for customer-specific software. Developers can create interfaces and functions that match their equipment, workflows, and end-user requirements rather than being restricted to a predefined application.
Compatibility with Raspberry Pi 5
The Raspberry Pi-compatible driver board design allows the kit to be used with a compatible Raspberry Pi 5 motherboard. Customers can select their own host board and software configuration according to their project needs.
Practical for prototype development
The integrated structure helps simplify initial mechanical planning and display-side assembly. Engineers can focus on application behavior, system integration, and functional testing.
Suitable for a range of embedded applications
The combination of capacitive touch, 400 cd/m² brightness, metal housing, and a specified -20°C to +70°C operating temperature range makes the A050RC01 a candidate for equipment interfaces and embedded development projects. Actual suitability depends on the complete system and operating environment.
No. The product package does not include the Raspberry Pi 5 motherboard. The A050RC01 is a basic integrated display development kit built around a Raspberry Pi-compatible driver board design. Customers must provide a compatible Raspberry Pi 5 board separately.
It is a basic integrated display hardware kit rather than a bare LCD panel. The assembly includes the specified display-side hardware, capacitive touch panel, driver board design, and metal housing. Refer to the official datasheet for the confirmed package contents.
The A050RC01 features a 4.96-inch diagonal LCD panel with a native resolution of 480 × 854 pixels. It is commonly described as a 5-inch-class Raspberry Pi 5 LCD display.
Yes. The kit is intended for custom software development. Once a compatible Raspberry Pi 5 board and suitable software environment are configured, developers can create their own graphical interfaces, dashboards, monitoring functions, and control applications.
Yes. The A050RC01 uses capacitive touch technology. Touch operation depends on the supported system configuration, drivers, and software environment.
The specified brightness is 400 cd/m². It is suitable for many indoor applications and controlled lighting conditions. Applications requiring direct-sunlight readability may need a higher-brightness display.
The specified operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C. The complete system must also meet the environmental requirements of the Raspberry Pi board, power supply, and other installed components.

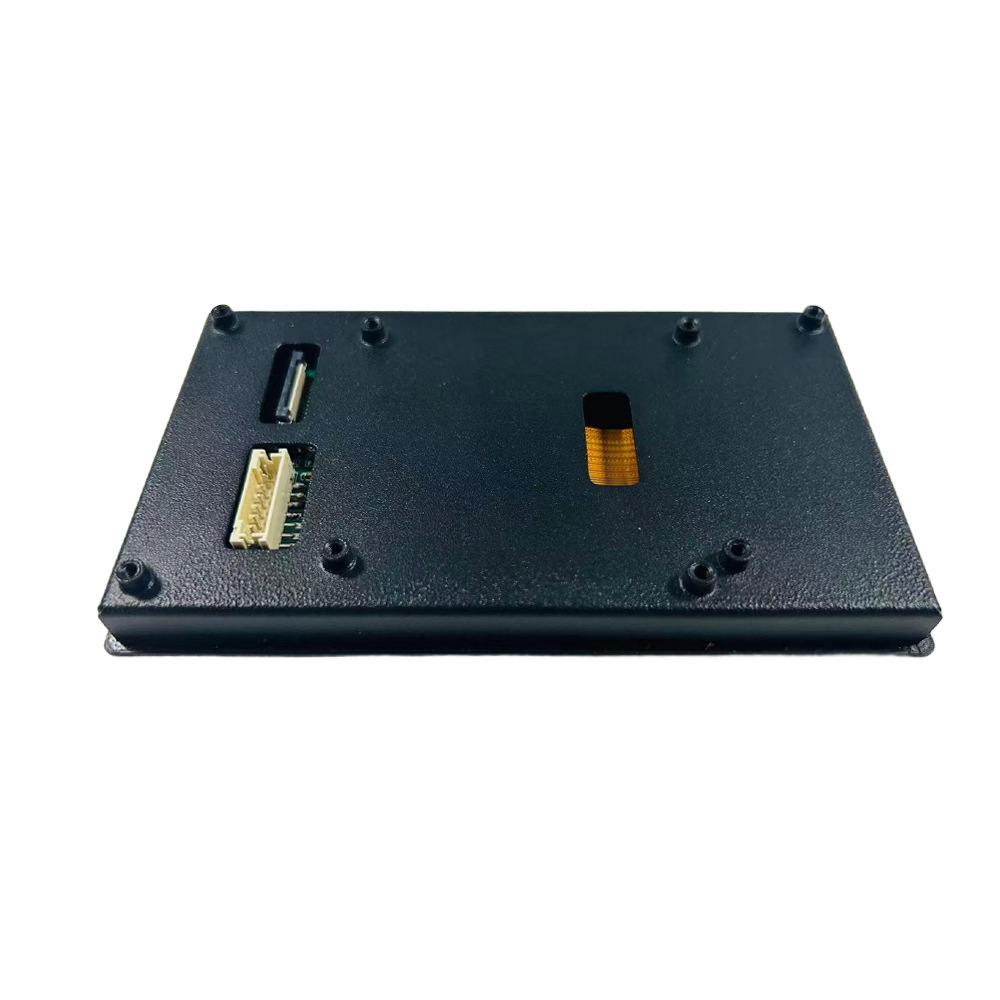

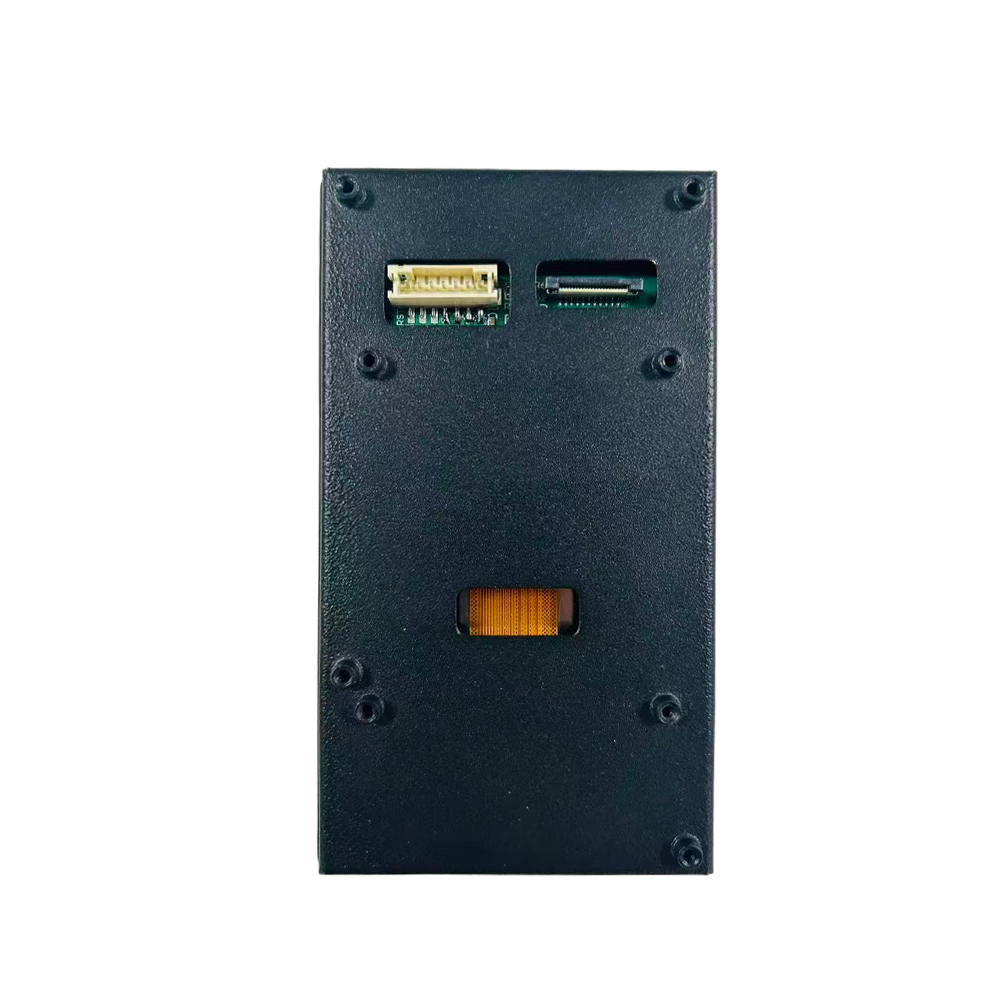

The assembly provides a 22-pin FPC/FFC interface and a 7-pin PH2.0 connector for designated display-related, backlight, and touch signals. Follow the official wiring diagram and connector pin definitions during integration.
It can be evaluated for industrial HMI, equipment monitoring, embedded instruments, and other application-specific systems. Final suitability depends on the environmental conditions, mounting design, electrical compatibility, and reliability requirements of the complete product.
Contact APTUS to request the A050RC01 datasheet, mechanical drawings, connector information, pricing, and other available product documentation.
Shenzhen APTUS International Co., Ltd. specializes in LCD display solutions for industrial and application-specific markets. Since 2014, APTUS has focused on LCD display development, manufacturing, and marketing, supporting customers with display modules and customized hardware solutions.
The company's product and engineering capabilities cover TFT LCD modules, touch panel solutions, LCD control boards, driver boards, cables, backlight solutions, and integrated display assemblies. Depending on project requirements, customization may include brightness, resolution, touch configuration, cable design, mechanical structure, and related hardware integration.
APTUS has an experienced R&D team and an ISO 9001 quality management system. The company supports customers with product selection, engineering evaluation, prototype development, and production planning, helping them identify display hardware that matches their application requirements.
For Raspberry Pi-compatible display projects, APTUS provides a hardware foundation that customers can evaluate and adapt through their own software development and system integration processes.
