Product Details: DBM160E8K01 16.0" Monochrome LCD Display

Overview:

The DBM160E8K01 is a 16.0-inch monochrome LCD display designed for use in 3D printers. With a resolution of 7680 x 4320 pixels, this high-definition display ensures crisp and clear images for your 3D printing needs. This model is specifically crafted without a backlight, making it suitable for applications where a high-contrast, clear image is essential.

Key Features:

- Display Type: Monochrome TFT LCD (Transmissive)
- Resolution: 7680 x 4320 pixels
- Pixel Size: 0.046 x 0.046 mm
- Interface Type: 4 LANE EDP
- Viewing Angle: All directions

Technical Specifications:

- Outline Size: 358.28 (W) x 207.42 (H) x 1.16 (T) mm
- Module Size: 16.0 inches
- Viewing Size: 353.28 (W) x 198.72 (H) mm
- LCD Type: TFT (Monochrome)
- Driver IC: Not specified
- Backlight Type: None
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C

Interface Definition:

- PIN NO.: 1-40
- Functions: Including Ground, Main link lanes, AUX channel, LCD logic and driver power, BIST mode enable, and HPD signal pin.

Optical Specification:

- Transmittance Rate (405nm): 7% - 8%
- Contrast Ratio (405): 300:1 - 400:1
- Response Time: 45 ms (Tr+Tf)
- Viewing Angle: 80° - 85° (C/R>10)

Reliability Testing:

- High Temperature Operating: 70°C, 168 hours
- Low Temperature Operating: -20°C, 168 hours
- High Temperature Storage: 80°C, 168 hours
- Low Temperature Storage: -30°C, 168 hours
- High Temperature & Humidity Storage: 60°C, 90%RH, 168 hours
- Thermal Shock Storage: -20°C to 70°C, 10 cycles
- ESD Test: Voltage: +8KV, Air discharge, 10 times
- Vibration Test: 10 => 55 => 10 => 55 => 10 Hz, 15 minutes for each direction (X, Y, Z)
- Drop Test: Packed, 100CM free fall 6 sides, 1 corner, 3 edges

Handling and Storage Precautions:

- Handling: Protect from static, use finger cots, avoid direct contact with liquid crystal material, and clean with water, IPA, or Hexane.
- Storage: Store in a dark place with temperature from 0 to 35°C and relative humidity less than 70%.

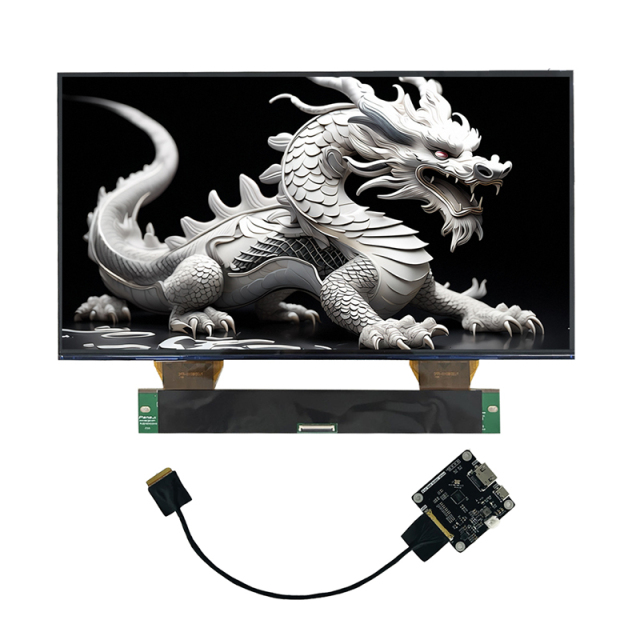

With driver board
